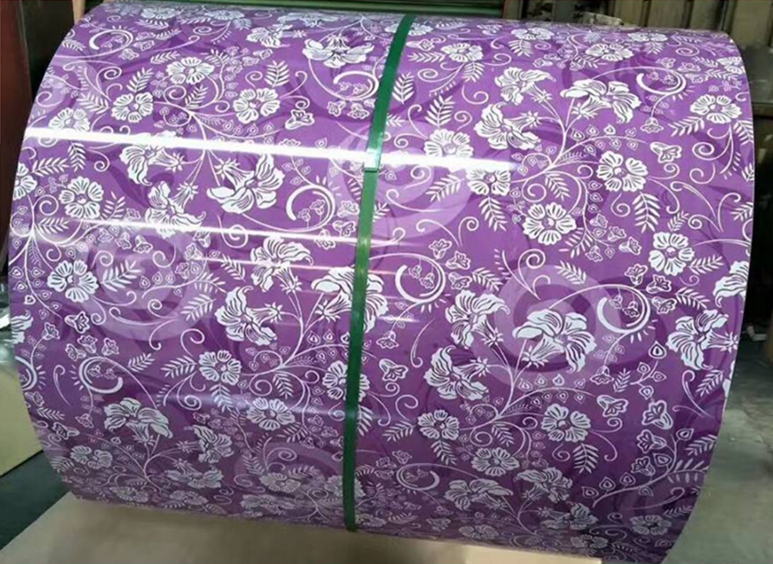

Flower Print Color Coated PPGI Steel Coil
Flower Finish Print Steel Coil
| Products | Prepainted Steel Coils | |
| Substrate | Hot dip galvanized, Galvalume, Aluminium... | |
| Thickness | 0.12-1.20mm | |
| Width | 600-1250mm ( Normal:1250, 1220, 1200,1000,914 mm) | |
| Coil weight | 3-9 tons or as your requirement. | |
| ID | 508/610 mm | |
| Coating | Zn coating | AZ coating |
| 30-275g/m2 | 30-275g/m2 | |
| Grade | Galvanized | Galvalume |
| DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z,SGCC,SGCD,SGCE, SGCH........ |
DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ,SGLCC,SGLCD, SGLC440,SGC570....... |
|
| Top Paint | 10-25 micron（Normal：10-12mic） | |
| Back paint | 5-12 micron（Normal：5-7mic） | |
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU | |
| Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance |
||
| Primer paint: Polyurethane, Epoxy, PE | ||
| Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance |
||
| Back paint: Epoxy, Modified polyester | ||
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | ||
